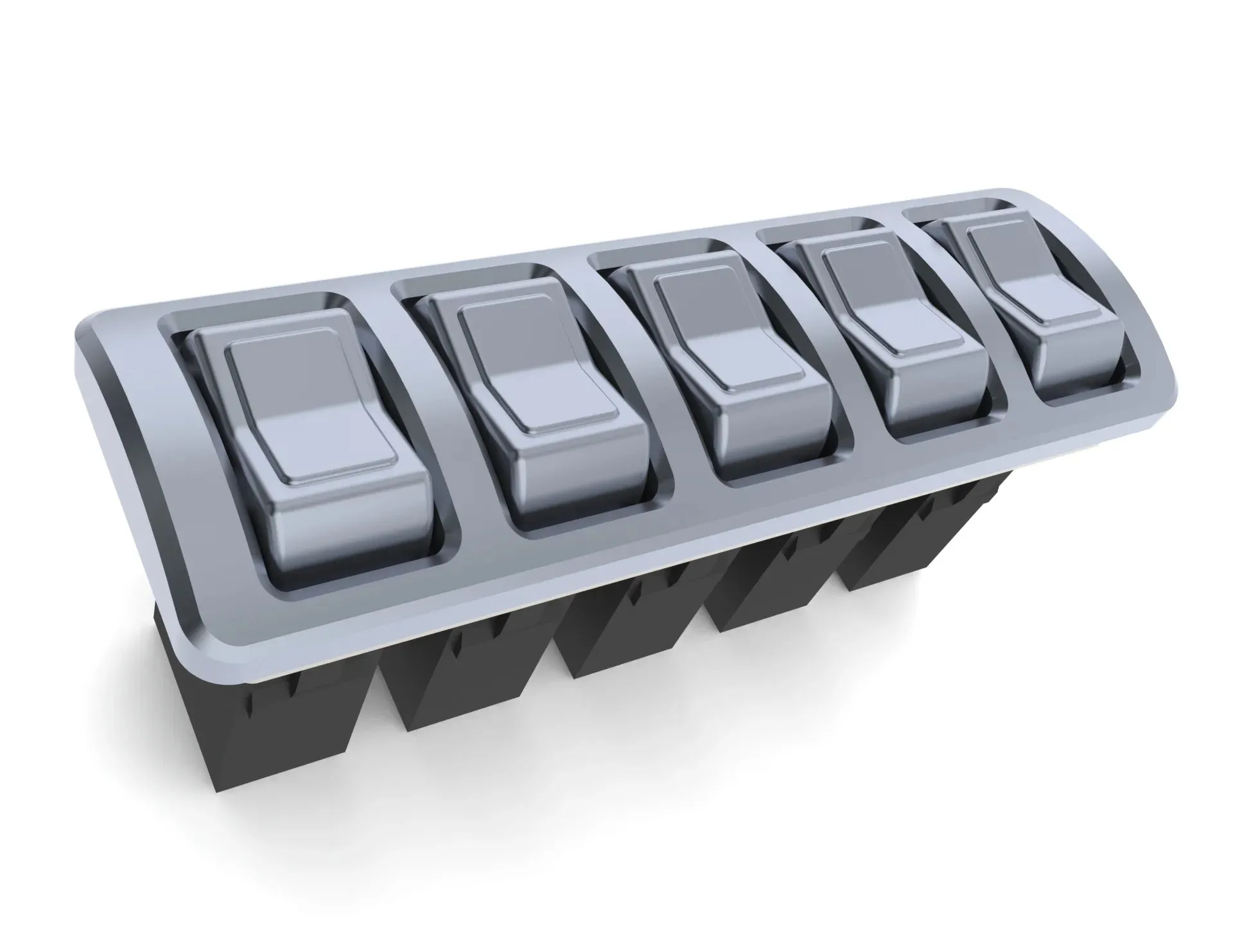

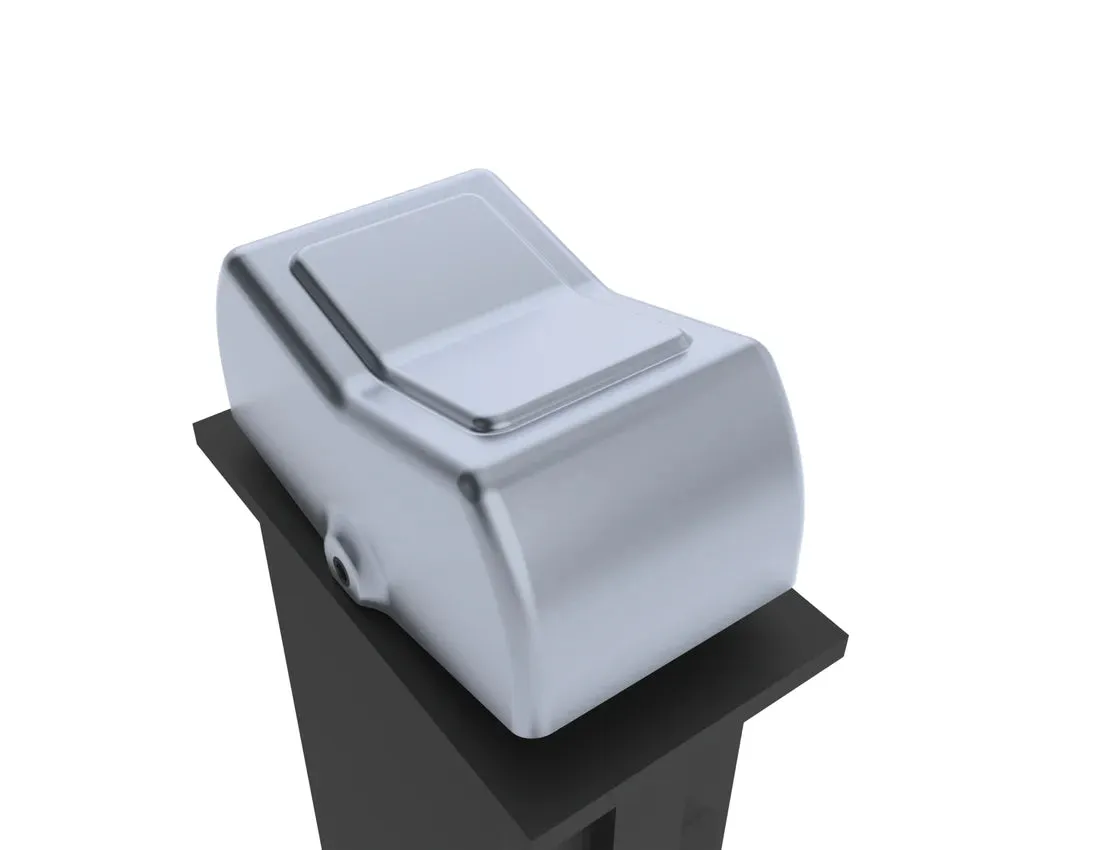

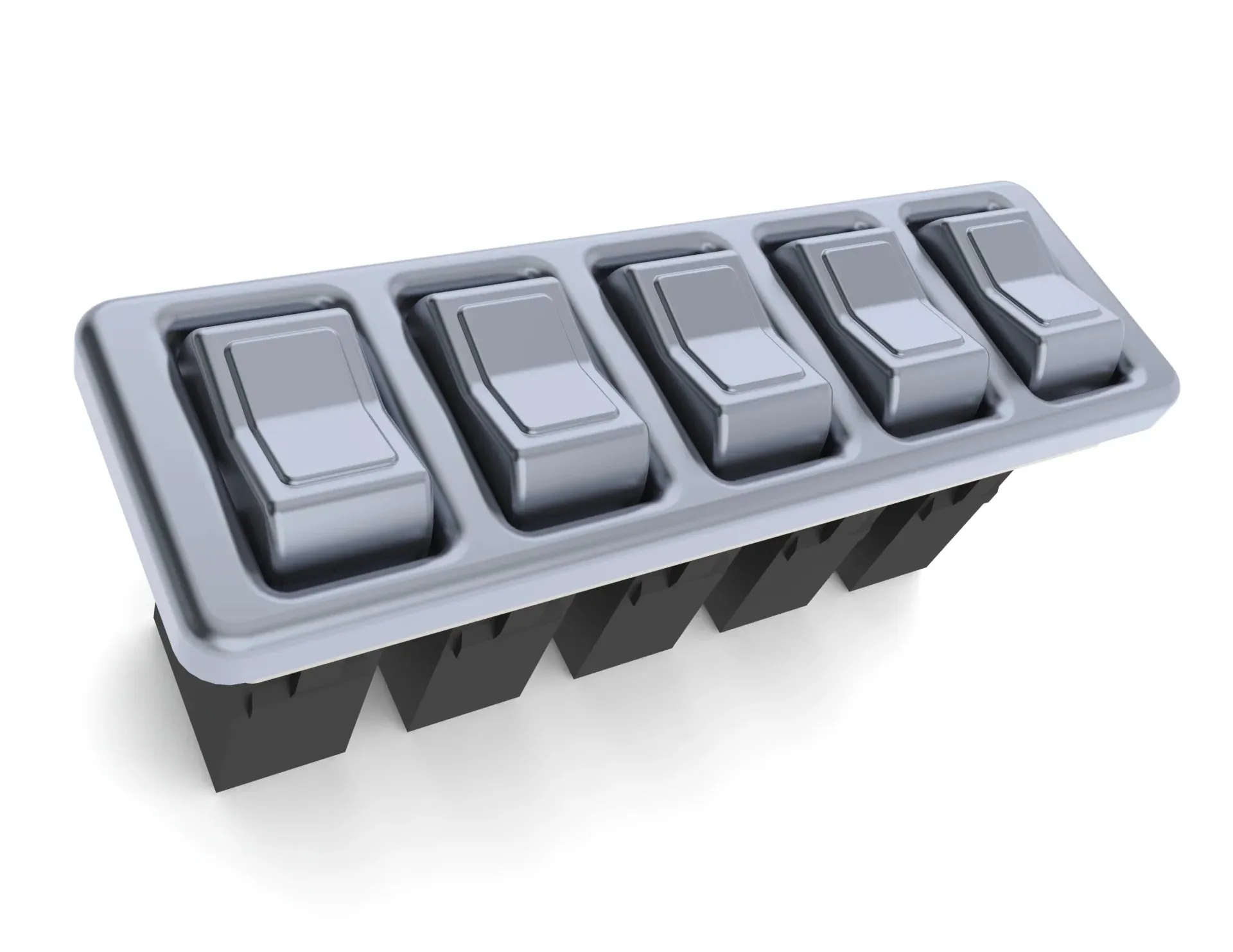

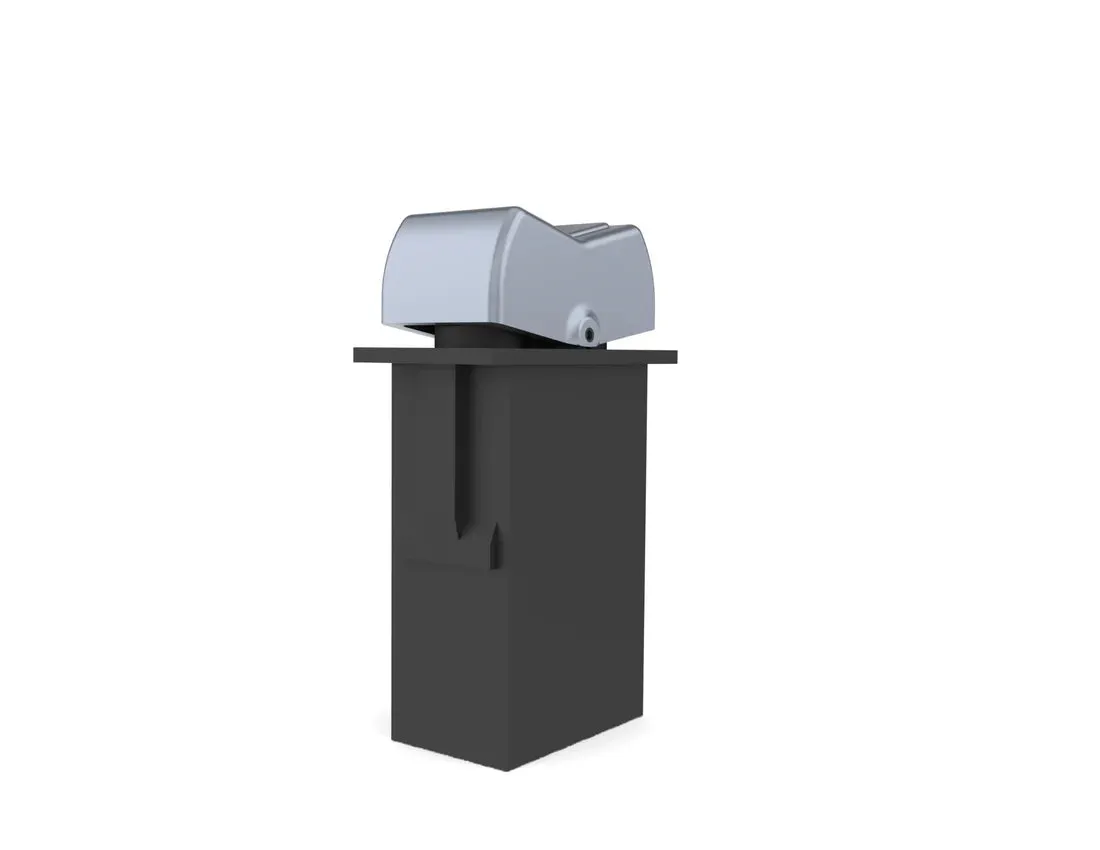

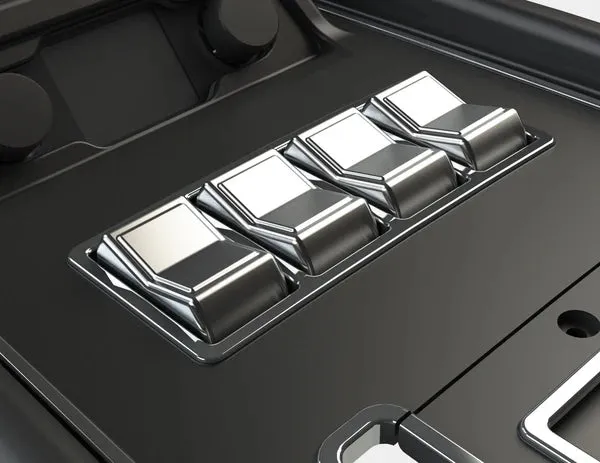

Engineered for a seamless factory-fit appearance, our OE-style switches combine outstanding performance with a timeless aesthetic. Proudly made in the USA, these switches boast aluminum tops available to be covered in a variety of finishes—from chrome and polished to anodized, powder-coated, cerakoted, painted, raw, blasted, or brushed—to perfectly complement any project.

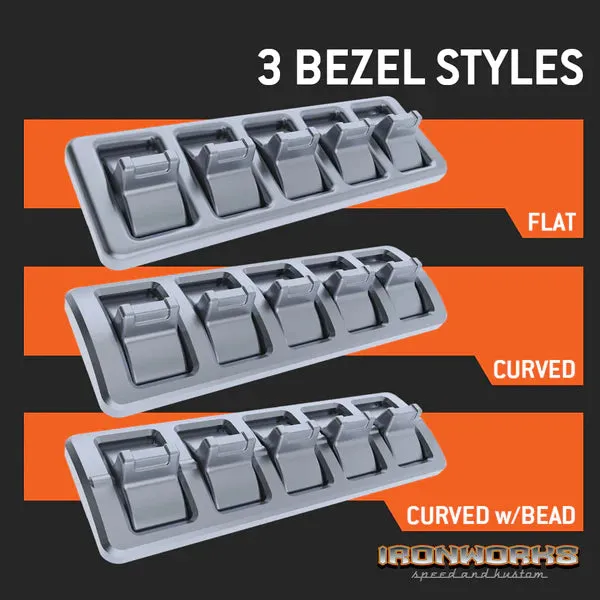

Additionally, the carefully crafted bezel design enables a more compact assembly and a pristine installation.

Available Functions:

• Power Window: Ensure smooth operation with momentary-on/off functionality.

• Headlight: Easily switch between off, low, and high beams.

• Starter Switch: Dependable momentary-on switch for engine starts.

• Universal: Simple and effective off-on control for various applications.

Power window switch - Pin Out

Pin 1 - Jumper wire also connected to Pin 6

Pin 2 - To ground

Pin 3 - Negative side of Power window motor

Pin 4 - Jumper wire also connected to Pin 3

Pin 5 - Fused Power circuit

Pin 6 - Positive side of Power window motor

Pin 7 - LED light - to ground

Pin 8 - LED light - from switched power

If you look on the side of the switch you will see the small number for each pin on the switch.

Headlight switch - Pin Out

Pin 2 - Fused Power for Parking lights

Pin 3 - To Parking lights or Parking light relay

Pin 5 - Fused Power for headlights

Pin 6 - To Headlights or Headlight relay

Pin 7 - LED light - to ground

Pin 8 - LED light - from switched power

If you look on the side of the switch you will see the small number for each pin on the switch.

On-Off switch - Pin Out

Pin 2 - To part for switched power

Pin 3 - Fused power for switched

Pin 7 - LED Light - to ground

Pin 8 - LED Light - from switched power

If you look on the side of the switch you will see the small number for each pin on the switch.
